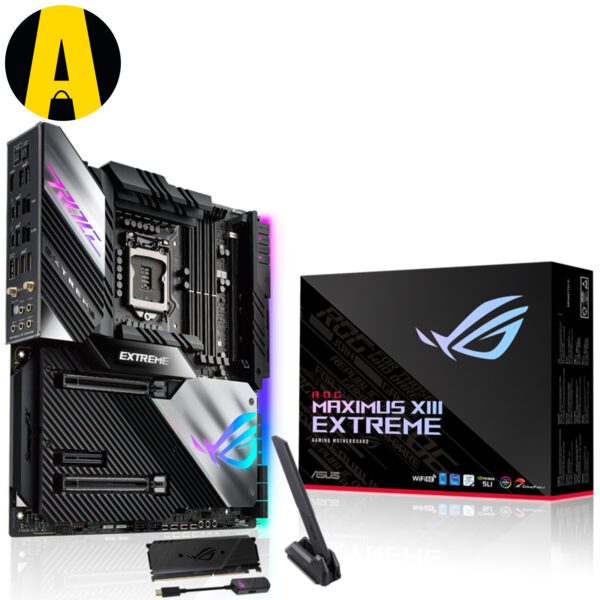

ASUS ROG Maximus XIII Extreme Intel Z590 EATX WiFi 6E 802.11ax and Aura Sync RGB lighting

Intel® Z590 EATX motherboard with 18+2 power stages, five M.2 slots, USB 3.2 Gen 2×2 front-panel connector, USB 3.2 Gen 2 front-panel connector, dual Thunderbolt™ 4, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, PCIe® 4.0, onboard WiFi 6E (802.11ax) and Aura Sync RGB lighting

ASUS ROG Z590 Features :-

• Intel^® Socket LGA 1200 for 11th Gen Intel^® Core™ processors and 10th Gen Intel Core, Pentium^® Gold and Celeron^® processors
• Intelligent Control: ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation
• Robust Power Solution: 18+2 teamed power stages – each rated at 100 Amps, ProCool II power connectors, MicroFine alloy chokes and 10K Japanese-made black metallic capacitors
• Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, five M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone
• High-Performance Networking: Onboard WiFi 6E (802.11ax), Marvell^® AQtion 10 Gb Ethernet, Intel^® 2.5 Gb Ethernet, and ASUS LANGuard
• Fastest Gaming Connectivity: PCIe^® 4.0, five M.2 slots, USB 3.2 Gen 2×2 front-panel connector, dual Thunderbolt™ 4 USB-C^®
• Industry-leading Gaming Audio: ROG SupremeFX ALC4082 with ESS^® ES9018Q2C DAC for high-fidelity sound
• Unmatched Personalization: 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
• DIY-Friendly Design: Pre-mounted I/O shield, V_Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder
• Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86



ASUS ROG Z590 Specification :-

CPU

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

____________________________________________________________________________________________________________

Chipset

Z590

____________________________________________________________________________________________________________

Memory

DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem III

____________________________________________________________________________________________________________

Graphics

1 x HDMI 2.0

2 x Intel® Thunderbolt™ 4 ports

____________________________________________________________________________________________________________

Expansion Slots

Intel® 11th &10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s)

– Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 mode(s) – Intel® 10th Core™ processors support PCIe 3.0 x16 or x8/x8 mode(s)

Intel® Z590 Chipset

1 x PCIe 3.0 x4 slot*

____________________________________________________________________________________________________________

Multi-GPU Support

NVIDIA 2-Way SLI® Technology*

____________________________________________________________________________________________________________

Storage

Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® 11th & 10th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

– Intel® 11th Core™ processors support PCIe 4.0 x4 mode

– Intel® 10th Core™ processors support PCIe 3.0 x4 mode M.2_2 slot (Key M), type 2242/2260/2280

– Intel® 11th Core™ processors support PCIe 4.0 x4 mode

– Intel® 10th Core™ processors support PCIe 3.0 x4 mode M.2_3 slot (Key M), type 2242/2260/2280

– Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® Z590 Chipset

DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*

6 x SATA 6Gb/s ports

Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH- attached slots.

To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

____________________________________________________________________________________________________________

Ethernet

1 x Intel® 2.5Gb Ethernet

1 x Marvell® 10Gb Ethernet

ASUS LANGuard

____________________________________________________________________________________________________________

Wireless & Bluetooth

Intel® Wi-Fi 6E

2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 hardware ready**

____________________________________________________________________________________________________________

USB

Rear USB (Total 10 ports)

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support

8 x USB 3.2 Gen 2 port(s) (8 x Type-A)

Front USB (Total 10 ports)

1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C®)

1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

____________________________________________________________________________________________________________

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

– Impedance sense for front and rear headphone outputs

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

– Supports up to 32-Bit/384 kHz playback

Audio Features

– SupremeFX Shielding Technology

– ESS® SABRE9018Q2C DAC/AMP

– LED-illuminated audio jacks

– Rear optical S/PDIF out port

– Premium Japanese audio capacitors

– Audio cover

____________________________________________________________________________________________________________

Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® port(s)

8 x USB 3.2 Gen 2 port(s) (8 x Type-A) 1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Marvell® AQtion AQC113CS 10Gb Ethernet

1 x Intel® I225-V 2.5Gb Ethernet

5 x LED-illuminated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

____________________________________________________________________________________________________________

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

2 x 4-pin Chassis Fan header(s)

2 x 4-pin Radiator Fan header(s)

2 x W_PUMP+ header(s)

1 x WB_SENSOR header(s)

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector

Storage related

3 x M.2 slots (Key M)

1 x DIMM.2 slot supports

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2×2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x BIOS Switch button

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x LN2 Mode jumper

8 x ProbeIt Measurement Points

1 x ReTry button

2 x RSVD switch

1 x RSVD header

1 x Safe Boot button

1 x Slow Mode switch

1 x Speaker header

1 x Start button

1 x V_LATCH switch

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

____________________________________________________________________________________________________________

Special Features

Extreme OC Kit

– FlexKey button

– LN2 Mode

– Probelt

– ReTry button

– Safe boot button

– Start button

– Slow Mode

Extreme Engine Digi+

– 10K Black Metallic Capacitors

– MicroFine Alloy Choke

ASUS Q-Design

– Q-Code

– Q-Connector

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink backplate

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button

– Clear CMOS button

– ProCool II

– Pre-mounted I/O shield

– SafeSlot

AURA Sync

– ROG AURA sync backplate

– AURA RGB header(s)

– Addressable Gen 2 RGB header(s)

Dual BIOS

OLED 2”

ASUS HYDRANODE

– 2 x Chassis fan support* (CHA_FAN1P, CHA_FAN2P)

– 2 x USB 2.0 port support* (USB_EP1, USB_EP3)

____________________________________________________________________________________________________________

Software Features

ROG Exclusive Software

– Mem Tweakit

– RAMCache III

– ROG CPU-Z

– GameFirst VI

– Sonic Studio III + Sonic Studio Virtual Mixer

– Sonic Radar III

– DTS® Sound Unbound

– Overwolf

– BullGuard Internet Security (1-year full version)

ASUS Exclusive Software

Armoury Crate

– AIDA64 Extreme (1 year full version)

– AURA Creator

– AURA Sync

– Two-Way AI Noise Cancelation

– OLED Display

AI Suite 3

– 5-Way Optimization with AI Overclocking

TPU

EPU

Digi+ Power Control

Fan Xpert 4

Turbo app

– EZ update

AI Charger

DAEMON Tools

MyASUS

WinRAR

UEFI BIOS

MemTest86

AI Overclocking Guide

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

____________________________________________________________________________________________________________

BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS

____________________________________________________________________________________________________________

Manageability

WOL by PME, PXE

____________________________________________________________________________________________________________

Accessories

Cables

1 x 1-to-3 ARGB splitter cable

2 x 1-to-4 fan splitter cable

1 x RGB extension cable

3 x ROG weave SATA 6G cables

1 x 3-in-1 Thermistor cables pack

ROG Fan Controller

1 x ROG Fan Controller

1 x Fan EXT PWR cable

1 x ARGB input cable

1 x USB input cable

1 x ROG Fan Controller 3M Mounting tape

1 x Fan Controller manual

ROG DIMM.2 with Heatsink

1 x ROG DIMM.2 with heatsink

1 x M.2 pad for ROG DIMM.2

2 x M.2 screw package for ROG DIMM.2

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Q-connector

1 x ROG CLAVIS DAC

1 x ROG key chain

1 x ROG Graphics card holder

1 x ROG logo plate stickers

1 x ROG screwdriver

1 x ROG stickers

1 x ROG thank you card

Installation Media

1 x USB drive with utilities and drivers

Documentation

1 x User manual

____________________________________________________________________________________________________________

Operating System

Windows® 10 – 64 bit

____________________________________________________________________________________________________________

Form Factor

EATX Form Factor

12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )
