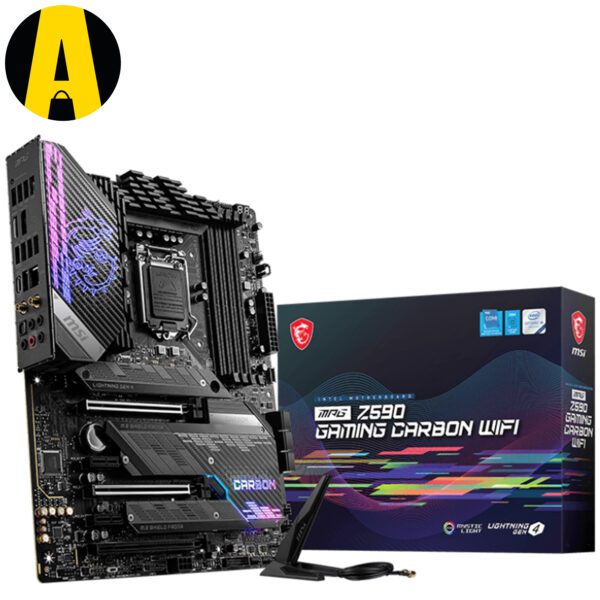

MSI MPG Z590 Gaming Carbon WiFi Gaming Motherboard

MSI MPG Z590 Gaming Carbon WiFi Features :-

• Supports 11th and 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5333(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
• Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
• Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

MSI MPG Z590 Gaming Carbon WiFi Specification :-

SOCKET

1200

____________________________________________________________________________________________________________

CHIPSET

Intel® Z590 Chipset

____________________________________________________________________________________________________________

MEMORY CHANNEL

DUAL

____________________________________________________________________________________________________________

DIMM SLOTS

4

____________________________________________________________________________________________________________

MAX MEMORY (GB)

128

____________________________________________________________________________________________________________

PCI-E X16

3

____________________________________________________________________________________________________________

PCI-E X1

2

____________________________________________________________________________________________________________

SATAIII

6

____________________________________________________________________________________________________________

M.2 SLOT

3

____________________________________________________________________________________________________________

RAID

0/1/5/10

____________________________________________________________________________________________________________

WIFI & BLUETOOTH

Intel® Wi-Fi 6E AX210

____________________________________________________________________________________________________________

USB 3.2 PORTS (FRONT)

1(Gen2, Type C), 2(Gen1, Type A)

____________________________________________________________________________________________________________

USB 3.2 PORTS (REAR)

1(Gen2x2, Type C), 3(Gen2, Type A), 2(Gen1, Type A)

____________________________________________________________________________________________________________

USB 2.0 PORTS (FRONT)

4

____________________________________________________________________________________________________________

USB 2.0 PORTS (REAR)

2

____________________________________________________________________________________________________________

AUDIO PORTS (REAR)

5+ Optical S/PDIF (Realtek® ALC4080 Codec)

____________________________________________________________________________________________________________

DISPLAYPORT

1

____________________________________________________________________________________________________________

HDMI

1

____________________________________________________________________________________________________________

DIRECTX

12

____________________________________________________________________________________________________________

CROSSFIRE

Y

____________________________________________________________________________________________________________

OPERATING SYSTEM

Support for Windows® 10 64-bit

____________________________________________________________________________________________________________

FORM FACTOR

ATX
